Product Description

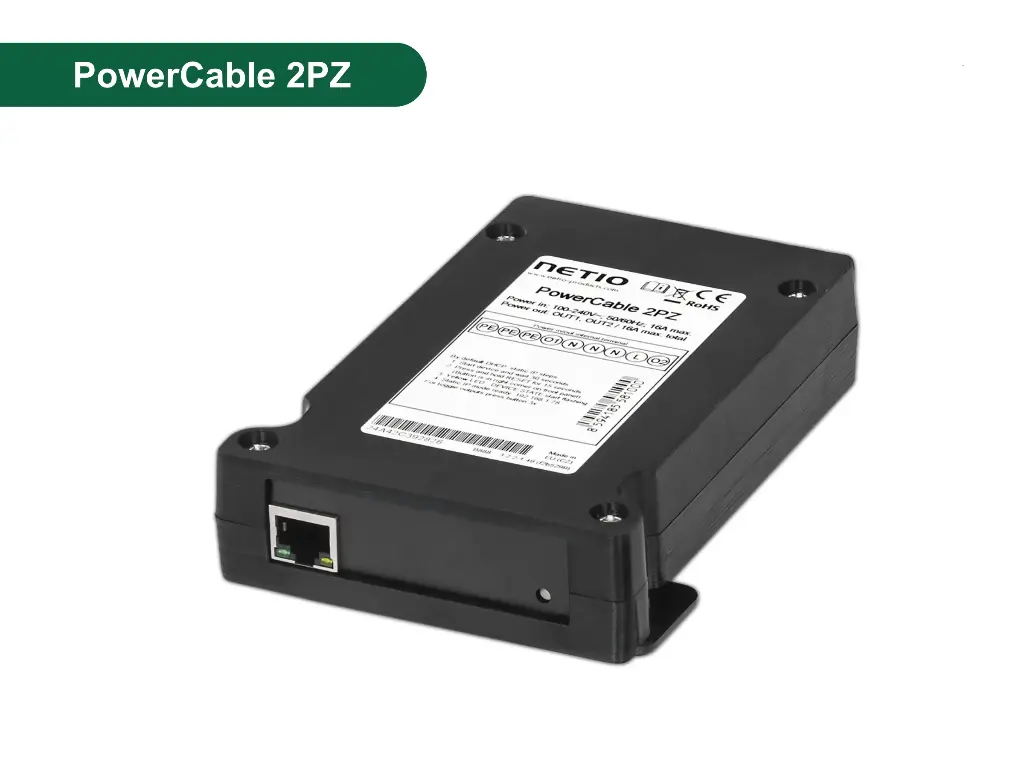

NETIO PowerCable 2PZ PDU LAN connectivity using a RJ45 (Ethernet) or WiFi (2.4 GHz – internal antenna).
Power Outputs 1, 2 switch On/Off both power output individually. Each output can be switched manually over the web, the NETIO Cloud service, or with a Mobile App (Locally or via NETIO Cloud).
PDU supports local Ping & Power WatchDog and Scheduler functions.
Open API enables integration into third-party systems using a wide range of protocols (JSON, Modbus/TCP, SNMP, MQTT, Telnet, ..).
With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service, provided for a fee, uses SSL/TLS security and servers in Europe.
AV drivers make it easy to connect NETIO sockets to professional Audio/Video control systems such as Neets, Crestron, Control4 etc.
Typical Applications
- The PowerCable 2PZ LAN/WiFi PDU is typically used for remote restarting
- Each output can be switched on/off or power-cycled (e.g. to restart all appliances connected to the same circuit branch) from the web interface or the NETIO Cloud service.
- Controlling the charging of e-bikes, boats and other appliances up to 3.6 kW (230V/16A).
- Controlling the outputs using Open API (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...)
- Integration with various third-party programs and applications.
- Controlling the device from the NETIO Mobile 2 app as long as the app is connected to the same network.
- The NETIO Cloud service, provided for a fee, enables central control of outputs of multiple devices in various locations.
Videos
Open API (protocols) (M2M)
- SNMP v1/v3 allows you to monitor graphs of electrical consumption in Nagios or Zabbix systems for IT supervision.
- By Modbus/TCP you can measure and switch electrical output from any PLC or SCADA system.
- MQTT or HTTP(s) Push makes connection of PowerCable 2KZ into cloud aplication AWS, IBM Bluemix or MS Azure much easier.
- Thanks to MQTT-flex extension, you can configure MQTT structure (Topic / Payload) and conditions of sending messages in detail.
AV Drivers
NETIO PowerCable 2PZ can be easily used with most popular AV systems
- BrightSign: free plugin AN47
- CONTROL 4
- CRESTRON: free & paid driver
- ELAN
- KRAMER: free driver to control outputs
- biamp
- RTI
- SAVANT
- LOXONE: example AN53
- Home Assistant: drivers by community
- OpenHAB: drivers by community
- And More!
Zero Voltage Switching
ZVS (Zero Voltage Switching) support is important for switching devices more than several times a day. ZVS ensures switching on and off of the switching relay when the voltage passes through zero.
ZVS reduces the stress on the connected electrical appliances, increasing the lifetime in case of frequent switching of appliances with a high inrush voltage. High inrush voltage is typical for switching supplies common in IT equipment.
Specifications
- LAN (RJ45): Yes
- WiFi: Yes
- Web: Built-in web server
- Online demo: Yes
- FW upgrade: Yes - web
- Mobile app: NETIO Mobile2 (LAN + Cloud)
- Installation without a Cloud connection: Yes
- Control button: Yes
- Service: NETIO Cloud (for a fee)
M2M API protocols:
- JSON over HTTP (default)
- MQTT-flex (extended MQTT, SSL enabled)
- HTTP Push JSON
- HTTP Push XML
- SNMP v1
- SNMP v3
- Modbus/TCP
- XML over HTTP
- URL API (http get) (writing only)
- Telnet (Outputs only, backwards compatible with KSHELL)
- Lua scripting support: No
- Condition & Rules: Yes
- Scheduler function (weekly calendar): Yes
- IP (ping) WatchDog function: Yes (Condition & Rules)
- Power WatchDog function: No
- Sending e-mails: No
- Power input: Terminal block (Ø 2.5mm), 100-240VAC (50/60Hz) / max 16A
- Power output: Terminal block (Ø 2.5mm)
- Metered outputs: none
- Power outputs: 2x Relay + ZVS (Out 1, 2: SPST-NO) – Max 16A
- DI (Digital Inputs): none
- Internal consumption: Max 2 W
- SPD – surge protection: Yes, type 3
- ZVS (Zero Voltage Switching): Yes
- IOC (output state independent from FW updates): Yes
- PowerUp state of outputs: On / Off / LAST state
- Mechanical characteristics: 102 x 32 x 149 mm (4 x 1.25 x 5.8 in)
- Weight: 0.43 lb
- Protection: IP20
- Sound output: No
- Temperature range: -20°C to +55°C (-4°F to 131°F)
