Product Description

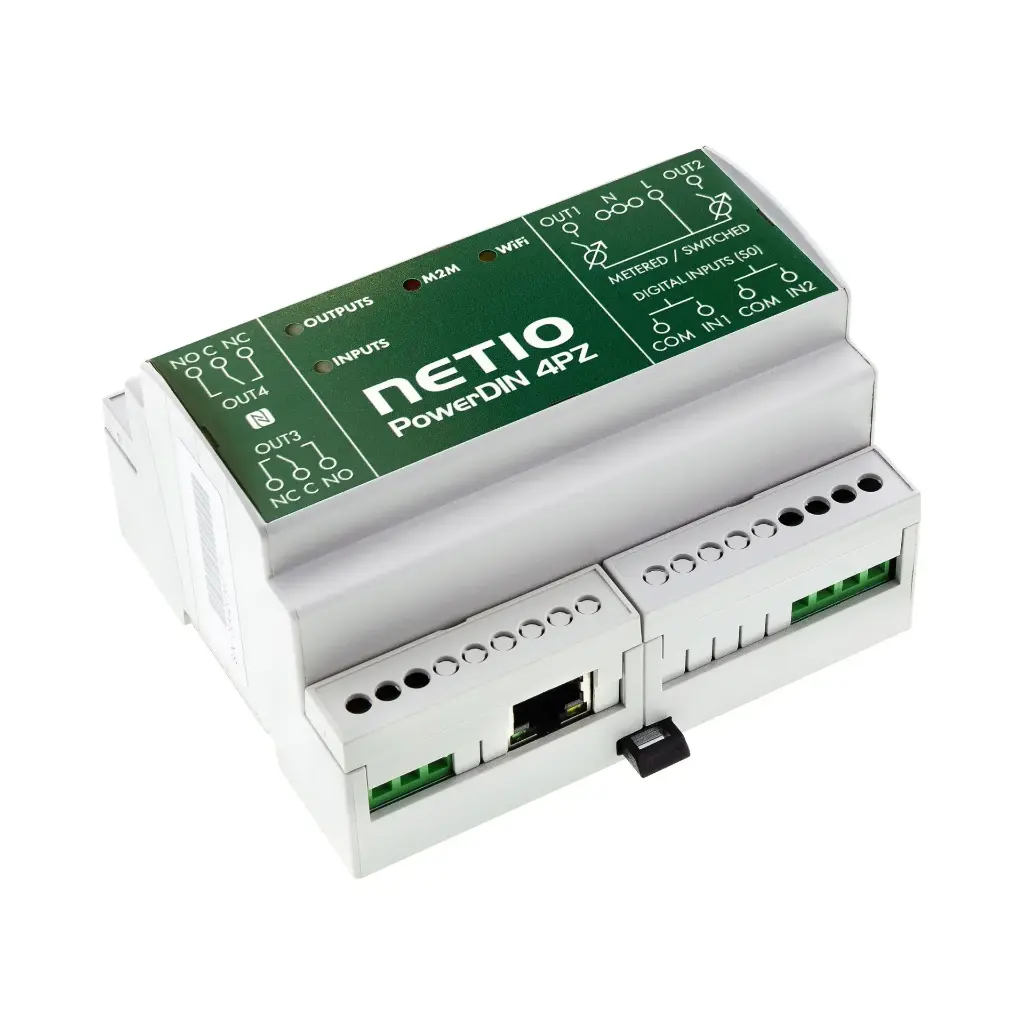

PowerDIN 4PZ is a dual 110/230V max 16A electricity meter with LAN/WiFi and I/O. Web control, support for NETIO Cloud, Open API.
NETIO PowerDIN 4PZ connects to the network using a RJ45 jack (Ethernet) or WiFi (2.4 GHz – internal antenna).
Outputs 1 and 2 feature accurate electricity metering (110/230V, max 16A). Moreover, the outputs can be switched on and off with a Zero Current Switching relay.
Outputs 3 and 4 feature NO/NC relay contacts. Digital inputs 1 and 2 with 4-byte pulse counters can be used to connect momentary switches (dry contact) or S0 outputs of electricity, water or similar meters.
Using the product’s web interface, measured values can be read and the 4 outputs can be switched on or off.
Open API enables integration into third-party systems using a wide range of protocols (JSON, Modbus/TCP, SNMP, MQTT, Telnet, ..).
With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service, provided for a fee, uses SSL/TLS security and servers in Europe.
Use Cases
- Electricity consumption monitoring for machines in the manufacturing industry
- Electric car AC charging control
- Switching power outputs on and off with a mobile app
- Consumption metering and socket control from NETIO Cloud
Videos
Open API (protocols) (M2M)
- The PowerDIN 4PZ LAN/WiFi PDU is typically used for electricity metering and distribution.
- Remote energy consumption monitoring in one or two circuit branches.
- Connecting the pulse output of a 3-phase electricity meter to In1 or In2 in order to measure electricity consumption above 16A.
- Each output can be switched on/off or power-cycled (e.g. to restart all appliances connected to the same circuit branch) from the web interface or the NETIO Cloud service.
- Controlling the charging of e-bikes, boats and other appliances up to 3.6 kW (230V/16A).
- Controlling the outputs using Open API (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...)
- Integration with various third-party programs and applications.
- Controlling the device from the NETIO Mobile 2 app as long as the app is connected to the same network.
- The NETIO Cloud service, provided for a fee, enables central control of outputs of multiple devices in various locations.
AV Drivers
- NETIO PowerDIN 4PZ can be easily used with most popular AV systems
- BrightSign: free plugin AN47
- CONTROL 4
- CRESTRON: free & paid driver
- ELAN
- KRAMER: free driver to control outputs
- biamp
- RTI
- SAVANT
- LOXONE: example AN53
- Home Assistant: drivers by community
- OpenHAB: drivers by community
- And More!
Zero Current Switching
ZCS (Zero Current Switching) support available on Out1 and Out2, is important for switching devices more than several times a day. ZCS ensures switching on and off of the switching relay when the current passes through zero.
ZCS reduces the stress on the connected electrical appliances, increasing the lifetime in case of frequent switching of appliances with a high inrush current. High inrush current is typical for switching supplies common in IT equipment.
Electrical Metering
Electrical measurement from Out1 and Out2 (accessible over the web interface as well as Open API)
- Current [A]
- Voltage [V]
- Consumption [Wh]
- Output power [W]
- TPF (True Power Factor)
- Frequency [Hz]
- Phase [°]
- Reverse Energy [Wh]
- Measurement accuracy: better than 1%
Specifications
- LAN (RJ45): Yes
- WiFi: Yes
- Web: Built-in web server
- Online demo: Yes - http://powerdin-4pz.netio-products.com:22888/ (login: demo/demo)
- FW upgrade: Yes - web
- Mobile app: NETIO Mobile2 (Android)
- Installation without a Cloud connection: Yes
- Control button: Yes (under the panel)
- Service: NETIO Cloud (for a fee)
Open API (M2M protocols)
- JSON over HTTP (default)
- MQTT-flex (extended MQTT, SSL enabled)
- HTTP Push JSON
- HTTP Push XML
- SNMP v1
- SNMP v3
- Modbus/TCP
- XML over HTTP
- URL API (http get) (writing only)
- Telnet (Outputs only, backwards compatible with KSHELL)
- Lua support: No
- Scheduler function: Yes (from FW 3.0.0.)
- Sending e-mails: No
- Power input: Terminal block (Ø 2.5mm), 100-240VAC (50/60Hz) / max 16A
- Power output: Terminal block (Ø 2.5mm)
- Metered outputs: 2 channels
- Digital Outputs: 4
- Digital Inputs: 2 + S0 counter (4 bytes)
- Internal consumption: Max 2 W
- SPD – surge protection: Yes, type 3
- Switching element: Relay (Out 1, 2: SPST-NO)
- ZCS (Zero Current Switching): Yes (outputs 1, 2)
- IOC (output state independent from FW updates): Yes
- PowerUp state of outputs: On / Off / LAST state
- Mechanical characteristics: 106 x 91 x 62 mm - 6M (SU) DIN
- Weight: 0.56 lb
- Protection: IP20
- Sound output: No
- Temperature range: -20°C to +55°C
